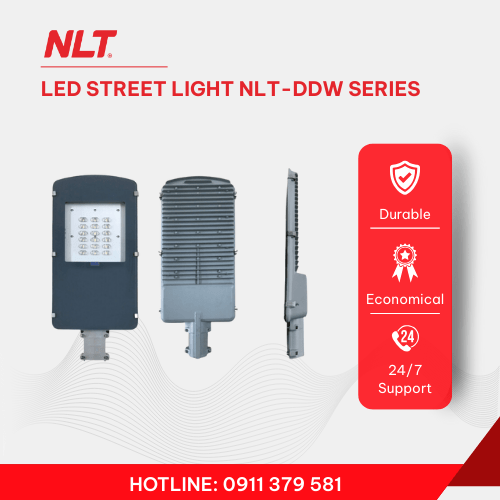

NLT – LED street light NLT-DDW Series

Outstanding features: Complies with IK08 impact resistance, designed with an adjustable tilt bracket for the pole arm. Surge protection: 10 kV. Uses Nichia LED chips from Japan, one of the world’s leading brands, ensuring quality, durability and consistent color.

Application: Installed at a mounting height of 8 m, it is highly suitable for highways, city streets and residential areas. During operation, the luminaire does not emit infrared or ultraviolet radiation. Its compact, safe structure and high durability make it resistant to damage and degradation.

Warranty: 01 year from the date of purchase, with an option to extend for an additional 1 year.

Technical specifications :

– LED color temperature: 3500K – 5000K

– Temperature limit: +70°C / -30°C

– Luminous efficacy: 139 lm/W – 154 lm/W

– Color rendering index (CRI): >80

– Input voltage: 90–305V AC / 50–60Hz

– Protection rating for optics and electrical compartment: IP66

– IK rating (impact resistance): 0.9

– Insulation class: Class I

– Power factor: ≥0.98

– LED lifetime at 25°C: 100,000 h

– Lumen maintenance factor: 0.8

– Surge protection (optional): 10 kVA

– Dimmable (optional): Multi-level power setting

LED street light NLT-DDW Series

Japan LED chip inside

LED driver control chip: Texas Instruments (USA)
