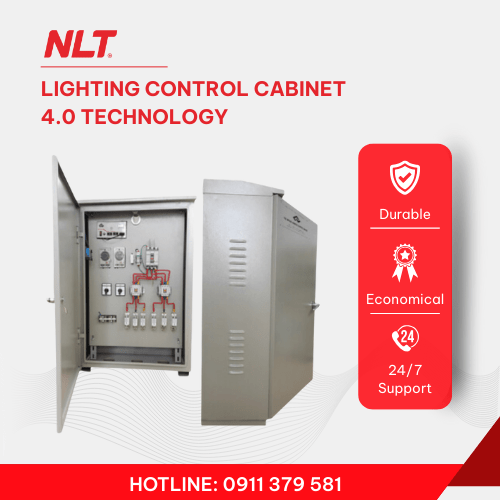

SMART LIGHTING CONTROL CABINET NTL-TCS Series
Control and power equipment section
Central controller: 1 unit
GPRS modem: 1 unit
MCCB 3P-80A/63A-230/400V ≥10kA: 1 piece
MCB 3P-10A-230/400V ≥10kA: 1 piece
MCB 1P – 10kA-230V according to actual requirements: 6 pieces
RCCB 4P-100A-300mA-10kA-230/400V: 1 piece
Contactor 3P-50A/35A-230V: 2 pieces
Current transformer 100(50)/5A: 3 pieces
Multifunction power meter (or electronic kWh meter): 1 piece
Leakage current detector: 1 piece
Product catalog
Product code Dimensions Size (mm) Current (A) Weight
NLT-TCS 50A H775xW480xD325 50A 8.0Kg
NLT-TCS 75A H775xW480xD325 50A 8.0Kg
The GPRS lighting control cabinet complies with the requirements stipulated in official dispatch No. 11849/SGTVT-KT dated 25/7/2017 issued by Ho Chi Minh City Department of Transport.
Control features
The cabinet can be switched on/off instantly or scheduled via software from the Control Center.
The cabinet is equipped with two independent real-time time sources, synchronized with the standard time from the central server.
The cabinet can be controlled to switch on/off for the entire cabinet or for each individual lighting circuit.
Control data from the Control Center is transmitted to the cabinet and stored in the memory of the “Controller” inside the cabinet to operate the system. In case the connection to the Control Center is lost, the cabinet still operates automatically based on the data stored in memory.
The central controller inside the cabinet must be capable of expanding control and monitoring down to each lighting point.
Monitoring features
The cabinet collects operating parameters of the system such as current, voltage, power and energy consumption on each phase and for the entire cabinet, then transmits them to the Control Center.
Based on the collected data, the software detects faults and updates the operating status of the cabinet such as: cabinet not operating, phase loss, undervoltage, overvoltage, etc.
The operation of the cabinet can be monitored daily through the energy consumption data sent from the cabinet to the Control Center.
The operating status of the cabinet can be tracked via graphs of current, voltage and power in real time.
