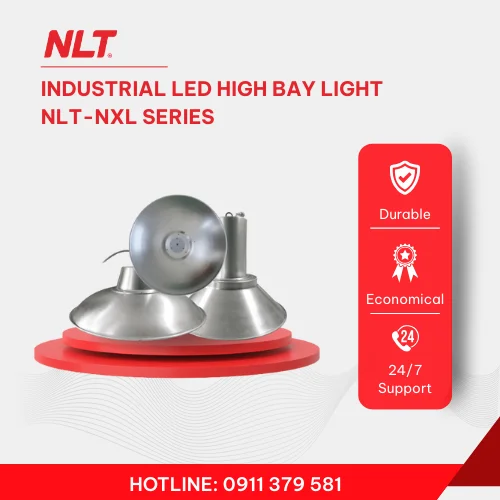

NLT – Industrial LED high-bay light NLT-NXL Series

Key features: Laminated aluminum housing with powder coating, power supply technology from Texas Instruments (USA), clear plastic diffuser with 120° beam angle. Uses Nichia LED chips from Japan, one of the world’s leading brands, ensuring quality, durability and long lifetime in terms of color stability and luminous output.

Application: The NLT-NXL Series industrial LED high-bay light installed at a height of 5 m is an ideal replacement for 4U/5U 55W–80W compact lamps. It is especially suitable for use in factory systems, warehouses, train stations, supermarkets, etc.

Warranty: 03 years from the date of purchase, with an option to extend for an additional 1 year.

Designed and manufactured in Vietnam

Technical specifications

– LED lifetime at 25°C: 100,000 h

– Color temperature: 3500K – 5000K

– Color rendering index: >80

– Lumen maintenance factor: 0.8

– Dimmable (optional): Multi-level power setting

– Insulation class: Class I

– Temperature limit: +70°C / -30°C

– IK rating (impact resistance): 0.9

– Surge protection (optional): 10 kVA

NLT-NXL30 industrial LED high-bay light

Japan Chip LED Inside

Packaging technology: SMT

Lumen maintenance standard: LM-80

LED luminous efficacy:

– Warm white 3500K: 152 lm/W

– Neutral white 5000K: 156 lm/W

– Cool white 6500K: 154 lm/W
