Product introduction
The LED bar floodlight NLT-DPM-50W is a compact industrial lighting product with optimized wattage, suitable for flexible installation in both indoor and outdoor areas. The product meets lighting demands well for construction sites, parking lots, billboards, showrooms, parks, and building facades, etc.
With a robust design, stable operation in various environmental conditions, and a long-term usage orientation, the LED floodlight helps optimize utilization efficiency and operating costs for lighting projects.
Product description
Product name

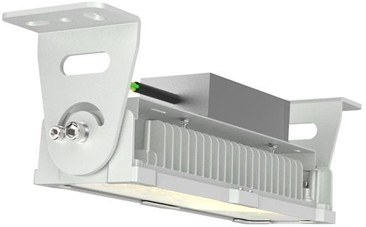

LED BAR FLOODLIGHT/INDUSTRIAL LIGHT
| PRODUCT TECHNICAL SPECIFICATIONS | |||
| Model code | NLT-DPM-50W | ||
| Power | 50W | ||
| Operating voltage | AC95-265V, 50/60Hz, 0.23A (at 230V) | ||
| Power factor (PF) | > 0.95 | ||
| IP/IK rating | IP67, IK09 | ||
| Total harmonic distortion (THD) | <10% (at 230V, 50Hz) | ||
| Surge protection | L/N-PE: 10KV, L-N: 6KV; optional 20KV version available | ||
| TECHNICAL CHARACTERISTICS | |||
| Color | Warm white | Natural white | Cool white |
| Correlated color temperature | 2700-3200K | 4000-4500K/5000-5500K | 5700-6500K |
| Color rendering index (CRI) | >70Ra/80Ra | >70Ra/80Ra | >70Ra/80Ra |
| Luminous Efficacy | 140 – 200Lm/W | ||
| Beam Angle | 20°, 30°, 45°, 60°, 90°,120°, 60×120°, 90×120°, Type 2, Type 3, Type 4 | ||
| CONFIGURATION | |||
| LED Chip | 3030/5050 SMD | ||
| LED Driver | 5-step Dimming Control/Non-dimming | ||
| Control Protocol | 1-10V/Dali | ||
| Material | ADC12 die-cast aluminum, PC lens + tempered glass | ||
| Housing Color | Gray | ||
| OTHER PARAMETERS | |||
| Operating Temperature | -35°C to 45°C | ||
| Operating Humidity | 10% – 90% RH | ||
| Lifetime | 100.000 hours | ||
| Net Weight / Gross Weight | 2.5 kg /2.8 kg | ||
| Package Size | 41 × 22 × 16 cm (2 units per carton) | ||
| Warranty | 5 years | ||
| Certification | Compliant with standards | ||

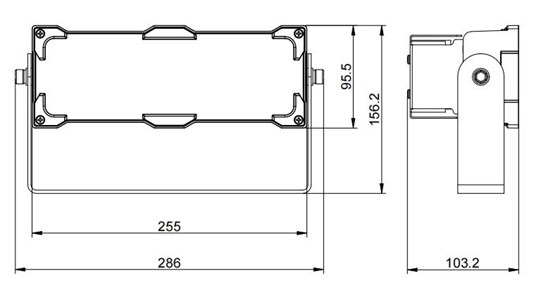

Product Dimensions
Applications
Widely used in shopping malls, billboards, exhibition halls, parking lots, tennis courts, stadiums, parks, gardens, building facades, and any indoor or outdoor areas.
Electrical Wiring Connection
| Brown/Black: Live Wire (L)
Blue/White: Neutral Wire (N) Yellow/Green: Ground Wire (G) |
 |
 |
The grounding wire must be properly connected! |
Warnings:
- Ensure the power supply is turned off before installation or wiring;
- Ensure the power supply is turned off before cleaning or maintenance;
- The luminaire will become very hot during operation; do not touch it with bare hands.
Commitment from NLT Group
- Standard-compliant quality: Products meet declared specifications, undergo technical inspection before shipment, and ensure durability and lighting performance.
- Professional technical support: Consultation on configuration, power, beam angle, and suitable installation solutions for each project.
- Official 5-year warranty: 5-year warranty applied according to manufacturer standards, with fast handling of technical issues.
- Long-term after-sales service: Accompanying customers throughout the usage process, providing support for maintenance, replacement, or upgrades when needed.
