Product introduction
The LED bar floodlight NLT-DPM-150W is a high-power industrial lighting solution optimally designed for outdoor lighting areas and large-scale spaces. The product meets stringent technical standards, features high dust and water resistance, and delivers outstanding luminous efficacy.
With a lifetime of up to 100,000 hours and multiple beam angle options, this is a durable, energy-efficient, and flexible lighting solution. It is well suited for modern residential, commercial, and industrial projects.
Product description
Product name

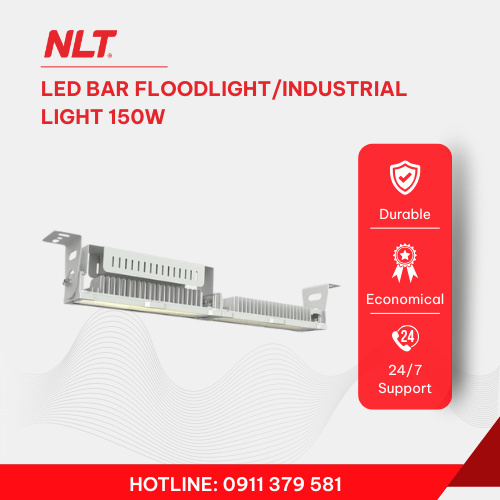

LED BAR FLOODLIGHT/INDUSTRIAL LIGHT

| PRODUCT TECHNICAL SPECIFICATIONS | |||
| Model code | NLT-DPM-150W | ||
| Power | 150W | ||
| Operating voltage | AC95–265V, 50/60Hz, 0.69A (at 230V) | ||
| Power factor (PF) | 0.95 | ||
| IP/IK rating | IP67, IK09 | ||
| Total harmonic distortion (THD) | <10% (at 230V, 50Hz) | ||
| Surge protection | L/N–PE: 10KV, L–N: 6KV; optional 20KV version available | ||
| TECHNICAL CHARACTERISTICS | |||
| Color | Warm white | Natural white | Cool white |
| Correlated color temperature | 2700-3200K | 4000-4500K/5000-5500K | 5700-6500K |
| Color rendering index (CRI) | >70Ra/80Ra | >70Ra/80Ra | >70Ra/80Ra |
| Luminous Efficacy | 140 – 200Lm/W | ||
| Beam Angle | 20°, 30°, 45°, 60°, 90°, 120°, 60×120°, 90×120°, Type 2, Type 3, Type 4 | ||
| CONFIGURATION | |||
| LED Chip | 3030/5050 SMD | ||
| LED Driver | 5-step Dimming Control/Non-dimming | ||
| Control Protocol | 1-10V/Dali | ||
| Material | ADC12 die-cast aluminum, PC lens + tempered glass | ||
| Housing Color | Gray | ||
| OTHER PARAMETERS | |||
| Operating Temperature | -35°C to 45°C | ||
| Operating Humidity | 10% – 90% RH | ||
| Lifetime | 100.000 hours | ||
| Net Weight / Gross Weight | 4.4 kg / 4.8 kg | ||
| Package Size | 75 × 22 × 16 cm (2 units per carton) | ||
| Warranty | 5 years | ||
| Certification | Compliant with standards | ||
Product Dimensions

Applications

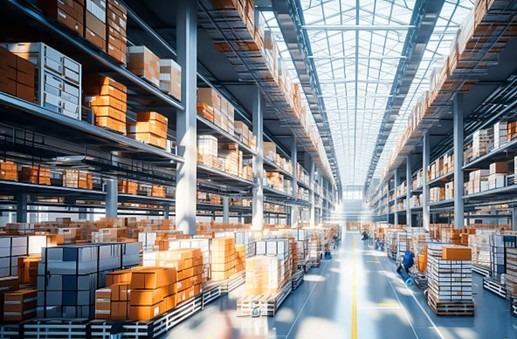

Widely used in shopping malls, billboards, exhibition halls, parking lots, tennis courts, stadiums, parks, gardens, building facades, and any indoor or outdoor areas.


Electrical Wiring Connection
| Brown/Black: Live Wire (L)
Blue/White: Neutral Wire (N) Yellow/Green: Ground Wire (G) |
![]() |
| The grounding wire must be properly connected! |
Warnings:
- Ensure the power supply is turned off before installation or wiring;
- Ensure the power supply is turned off before cleaning or maintenance;
- The luminaire will become very hot during operation; do not touch it with bare hands.
Commitment from NLT Group
- Standard-compliant quality: Products meet declared specifications, undergo technical inspection before shipment, and ensure durability and lighting performance.
- Professional technical support: Consultation on configuration, power, beam angle, and suitable installation solutions for each project.
- Official 5-year warranty: 5-year warranty applied according to manufacturer standards, with fast handling of technical issues.
- Long-term after-sales service: Accompanying customers throughout the usage process, providing support for maintenance, replacement, or upgrades when needed.
